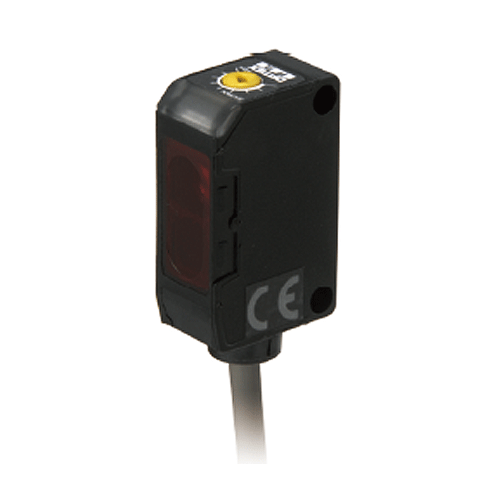

S Series - Small Type

  • Thương hiệu: OPTEX-FA
  • Mã sản phẩm: OPTEX-PHOTOSENSOR
  • Tình trạng: Còn trong kho
Liên hệ
Giá sau Thuế: Liên hệ

Loại nhỏ gọn, phù hợp cho mọi vị trí lắp đặt

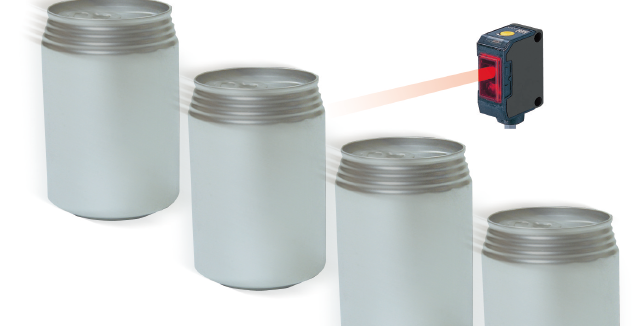

Features a high speed response time of 0.5 ms, enabling its use on high speed production lines

  • With a response time of 0.5 ms, this photoelectric sensor with built-in amplifier features a top level response time. This feature makes its use on high speed production lines possible.

  • Small in size with noise resistance that conforms to CE standards

    In addition to being small in size, it has cleared strict CE inspection standards for EU noise resistance performance. It can be used for a wide range of machine equipment.

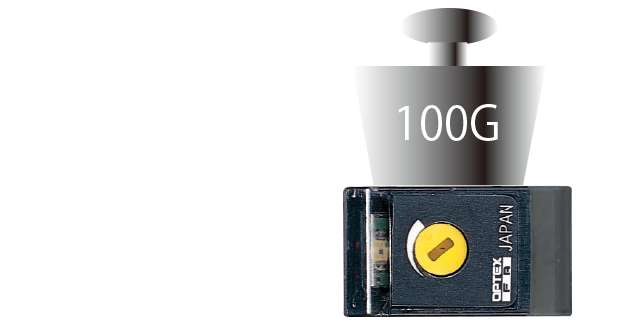

  • Shock resistance of 100 G with robust structure

    Features a shock resistance of 100 G (approx. twice that of conventional products) for protection in the event that workpieces come in contact or impact with sensors. It can be used without having to worry about performance deterioration.

  • Small sensor with built-in amplifier

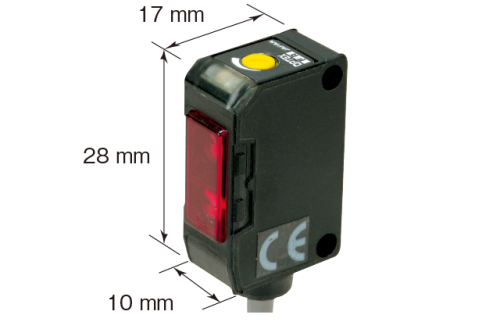

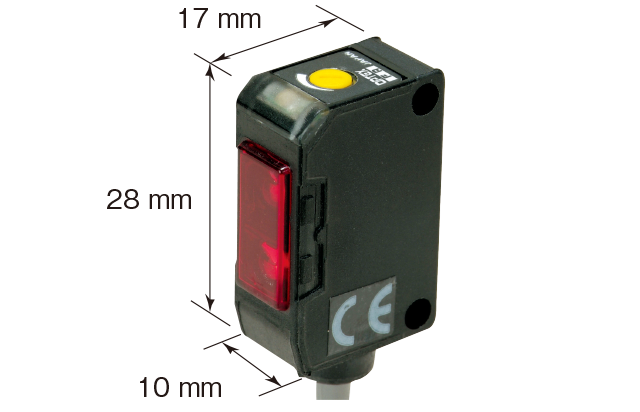

    The main unit features a compact design of 10 × 17 × 28 mm. This compact size was realized without sacrificing any specifications, such as those regarding sensing distance.

  • Applicable to VDE safety standards

    Features a safe design in which the main unit will not catch fire even if sensor troubles (short-circuits/ overvoltage/etc.) occur. S series models conform to VDE standards.

  • Can be used globally as it conforms to the strict standard of each country.

    S series is conforms to CE, UL and VDE standards and has cleared severe testing standards of various countries worldwide. This series can be used in any region of the world.



THÔNG SỐ CƠ BẢN
Model S
Tín hiệu đầu ra NPN/PNP type Open collector Max. 100 mA/30 VDC
Voltage 10 to 30 VDC, including 10% ripple (p-p)
Spot size ø6 mm, ☐ 45 mm
Thời gian phản hồi 0.5 ms or less
Khoảng cách phát hiện 4 m, 0.02 to 1.5 m*1, 200 mm*2,
