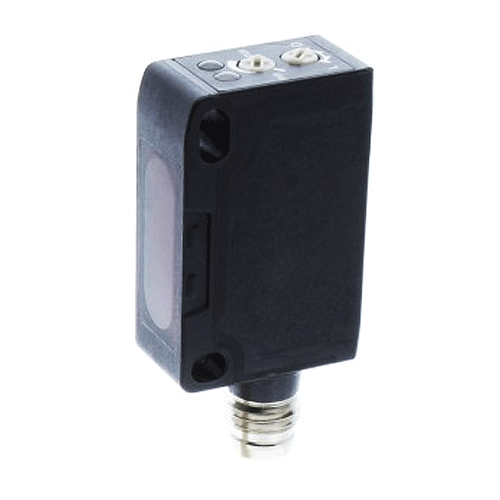

S2 Series - Standard elongated hole type
- Thương hiệu: OPTEX-FA
- Mã sản phẩm: OPTEX-PHOTOSENSOR
- Tình trạng: Còn trong kho
Liên hệ
Giá sau Thuế: Liên hệ
Long range detection with a small body
Long range detection with a small body
- Achieves long range detection
- Flexible mounting hole design
- Hi-speed response: 0.5 ms
-
Achieves long range detection
Achieves top class response time for small, general-purpose photoelectric sensors.

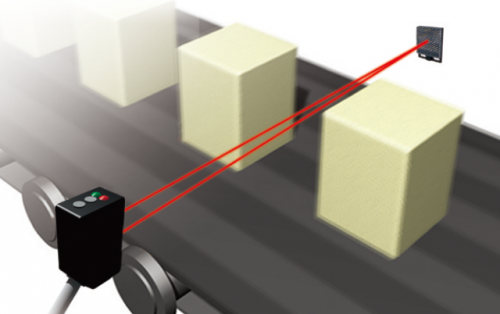

This feature makes detection in high speed production line possible
-

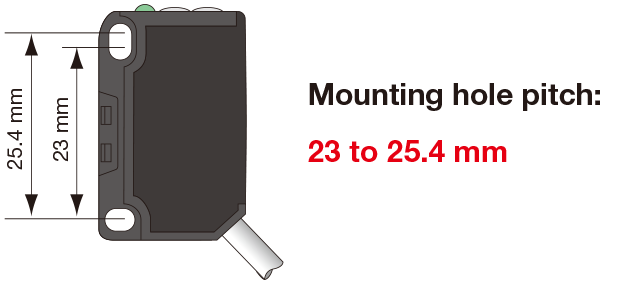

Flexible mounting hole design
Flexible mounting is possible using holes whose pitch was altered during machining or holes that were already made.
-
| THÔNG SỐ CƠ BẢN | |
| Model | S2 |
| Tín hiệu đầu ra | NPN/PNP type Open collector Max. 100 mA/30 VDC |
| Voltage | 10 to 30 VDC, including 10% ripple (p-p) |
| Spot size | Φ4.5 mm □ 50 mm |
| Thời gian phản hồi | 0.5 ms or less |
| Khoảng cách phát hiện | 12 m, 0.01 to 3.5 m*1, 0 to 800 mm*2, |
