V3/V4 Series- Terminal Block Type/Cable Type

  • Thương hiệu: OPTEX-FA
  • Mã sản phẩm: OPTEX-PHOTOSENSOR
  • Tình trạng: Còn trong kho
Liên hệ
Giá sau Thuế: Liên hệ

Universal voltage type that allows selection of connection types


Universal voltage type that allows selection of connection types

    •  Sensing distance: 70 m
    • Uses a red LED for the light source.
      Easy adjustment of light axis even over long distances
    • Universal voltage types are available as terminal block types and cable types
      DC power types are also available as connector types

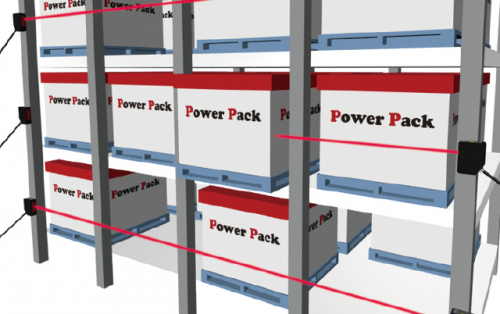

    • Achieves 70 m sensing distance as a through-beam type. Expanded long range detection applications.

      Easy adjustment of light axis

      Employs red LED for light source (all models)

      • Uses a red LED for the light source for which light axis adjustments are possible even over long distances. Makes it possible to save time on installation. Also possible to see the detection point in the case of short distances.

      Terminal block type / Cable type / Connector type (DC power types only)

      Possible to select from three connection types

      Three types are available: A terminal block type which allows the connection of various cables, a cable type which doesn’t require the separate preparation of cables, and a connector type which doesn’t require rewiring when changing sensors.
      Select the most suitable model. (Connector type is for DC power types only)

THÔNG SỐ CƠ BẢN
Model V3/V4
Tín hiệu đầu ra NPN/PNP type Open collector Max. 100 mA/30 VDC
Voltage 10 to 30 VDC, including 10% ripple (p-p)
Thời gian phản hồi 15 ms or less
Khoảng cách phát hiện 70 m 0.01 to 12 m*1 0.01 to 2 m*2
