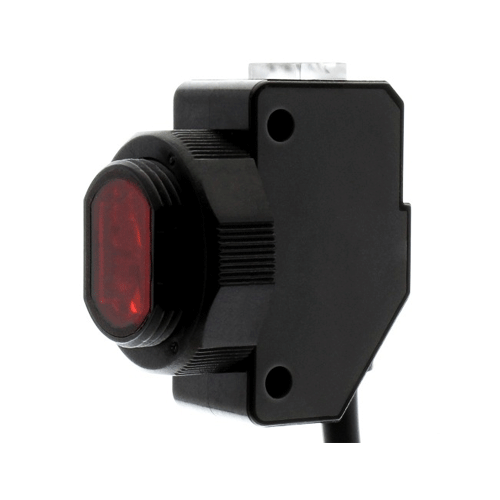

Y Series - M18 Threaded Front Mounting Type

  • Thương hiệu: OPTEX-FA
  • Mã sản phẩm: OPTEX-PHOTOSENSOR
  • Tình trạng: Còn trong kho
Liên hệ
Giá sau Thuế: Liên hệ

Flexible Installation M18 Threaded or 24.1mm Pitch Holes


Flexible Installation M18 Threaded or 24.1mm Pitch Holes

  • Complete selection of sensing types including
  • Transparent Object Detection
  • M18 Threaded Front Mounting
  • Stable Sensing Even For Plastic/Glass
  • Wide Selection

    The Y series is offered with seven different models. Thru-beam, Diffuse, Retro-reflective, Transparent object detection, Convergent Beam (two types) and BGS (Background suppression). There is a model for use in almost any application.

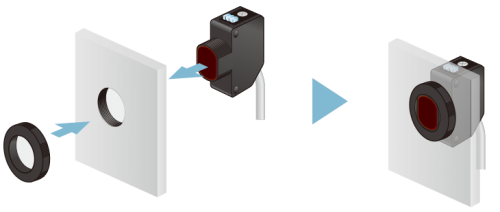

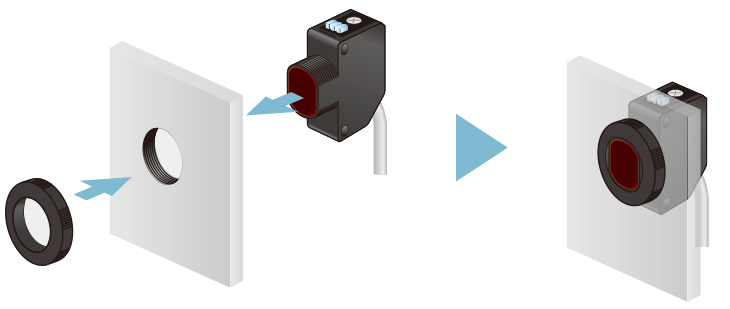

    M18 Threaded Front Mounting

    The sensor can be easily mounted by inserting into an 18 mm opening. There are also conventional mounting holes in the sensor body for added flexibility.

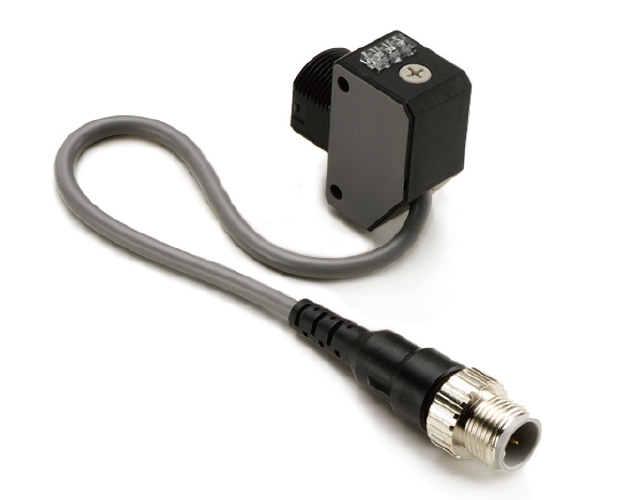

    • Pig-tail Connector

      M12 pig-tail type are available for easy maintenance.

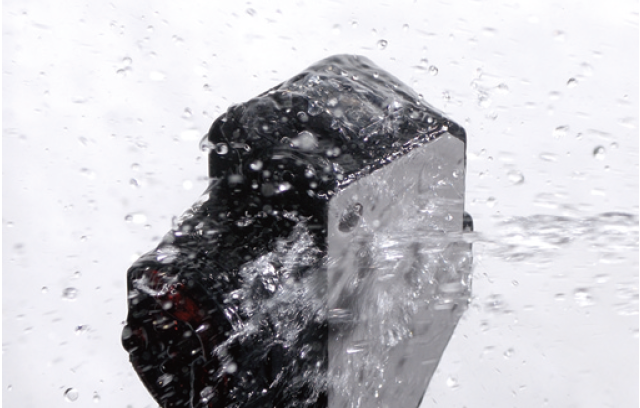

    • Rugged Waterproof Construction

      The sensor has an IP67 rating. It is ideal for use in applications where it may be exposed to water spray.

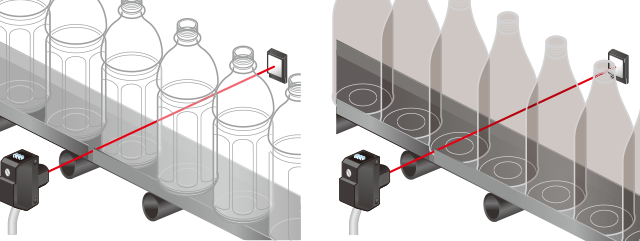

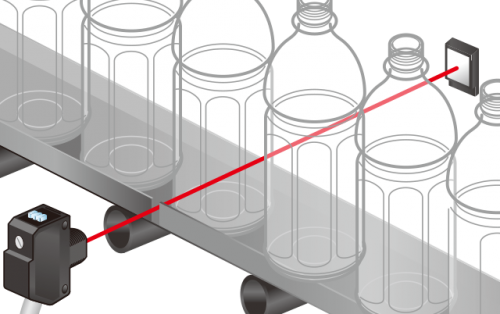

    Stable Sensing Even For Plastic/Glass

    The YR-Q series was designed for the detection of transparent targets.These are ideally suited for clear plastic and glass bottle applications.

THÔNG SỐ CƠ BẢN
Model Y
Tín hiệu đầu ra NPN/PNP type Open collector Max. 100 mA/30 VDC
Voltage 10 to 30 VDC, including 10% ripple (p-p)
Thời gian phản hồi 0.5msec
Khoảng cách phát hiện 30m (1180 inch) 0.4m (15.7 inch) 3.5m (140 inch) V-61 reflector 1m (39.3 inch) P45A reflector 43mm (1.7 inch)
