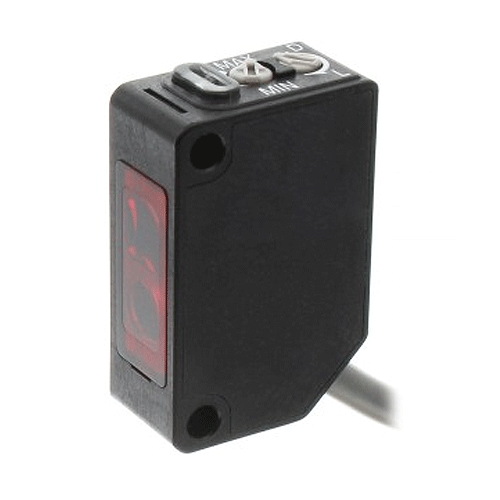

Z2 Series - Low Cost / Small Type

  • Thương hiệu: OPTEX-FA
  • Mã sản phẩm: OPTEX-PHOTOSENSOR
  • Tình trạng: Còn trong kho
Liên hệ
Giá sau Thuế: Liên hệ

Dòng sensor giá thành thấp, với khoảng cách phát hiện tới 25m


Achieved by our unique Opto-ASIC

Realized unprecedented price reduction

We’ve succeeded in lowering costs through in-house development of the chip-on-board Opto-ASIC, in which both a switching circuit and light receiving element have been integrated.



Employs a newly developed high-brightness 4 element LED

Longest sensing distance in the class!

Equipped with a newly developed 4 element red LED light source. In addition to minimizing the decreases in emitted light that occur over time, it features a through-beam type sensor with a longest-in-class 25 m sensing distance! Not only is detection over long distances possible, but it is also tolerant against dust and fine particles.

  • Eco-friendly

    Ultra-low current consumption

    Power consumption reduced by 35% *, contributing to the eco-friendliness of all devices and machinery.

  • Enhanced operability

    Easy-to-see indicators and operating panel

    The indicator part is equipped with a cover featuring an inner-surface reflecting structure. The cover surface does not diffuse light, but instead improves visibility by reflecting light in multiple directions internally. Also, silk printing has been used for the operating panel. This is a user-friendly design that enables labelling to be easily seen even in dark areas.

THÔNG SỐ CƠ BẢN
Model Z2
Tín hiệu đầu ra NPN/PNP
Voltage DC10-30V
Spot size Approx. ø1000 mm (at distance of 25 m) Approx. ø220 mm (at distance of 4.4 m) Approx. ø140 mm (at distance of 1 m)
Thời gian phản hồi 500 μs
Khoảng cách phát hiện 25 m 0.01 to 4.4 m*1 0 to 1 m*2
